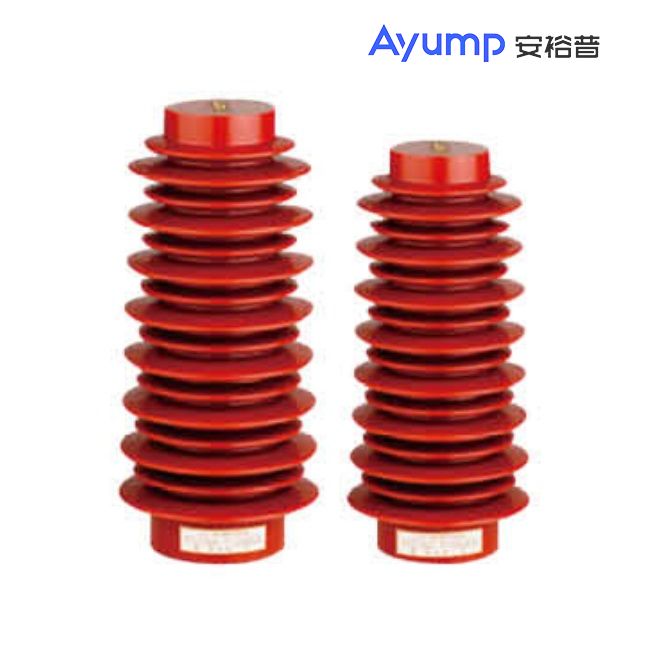

JDZX9-35 Indoor High-Voltage Voltage Transformer

products detial

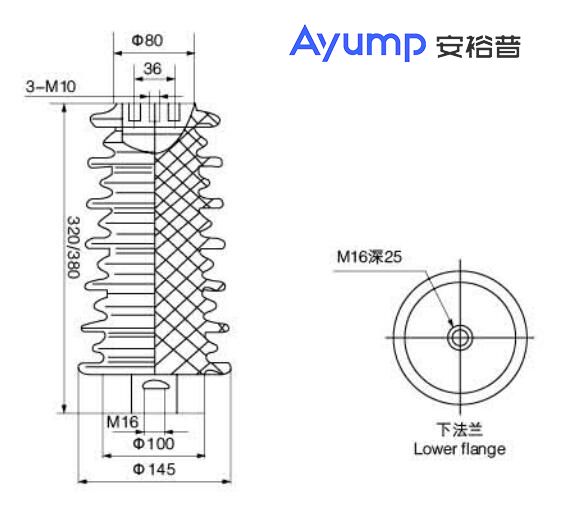

JDZX9-35 Indoor High-Voltage Voltage Transformer

Model meaning

Technical Parameters

◆Power factor of load: COSφ=0.8 (hysteresis);

◆Rated frequency: 50 or 60Hz;

◆Pollution level: Grade II ;

◆Ambient temperature: the lowest temperature is -5℃ , the highest temperature is 40℃ , and the daily average temperature is not more than 30℃ ;

◆Altitude:≤2000 meters;

◆Product standard: GB20840.1 GB20840.3.

Technical Data Sheet

Model	Rated primary voltage(V)	Rated secondary voltage(V)	Auxiliary winding voltage(V)	Secondary winding rated output(VA)			Limit output(VA)	Rated insulation level(kV)
				0.2	0.5	3(6)P
JDZX9-35	35000/√3	100/√3	100/3	30	50	120	800	40.5/95/185
		100/√3/100/√3		30	50	120	800
JDZX9-35		100/√3		30	50	120	800
		100/√3/100/√3		30	50	120	800
